Implementation details

This document aims at giving a more in-depth explanation of the internal structure of a VersionedCollection class and how the versioning works. A VersionedCollection extends a pymongo Collection to be able to interact with a mongo server and adds versioning features to it.

Top level architecture

From the top-level, when a VersionedCollection object it created, two things happen:

1. A connection to the mongo server is opened by the VersionedCollection to allow to interact with the target collection from the database.

2. A listener process is launched and records the IDs of all the modified documents in the target collection. This happens in parallel, and changes are almost instantaneously detected and recorded.

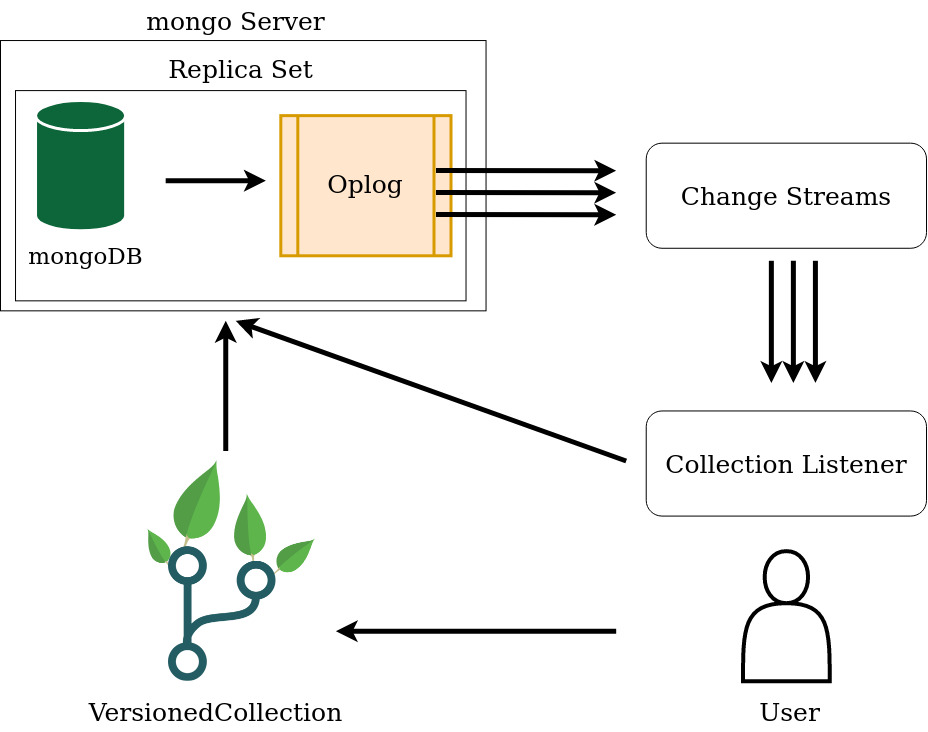

Fig. 2 Overall architecture.

Fig. 2 shows the high-level architecture. The mongo server has to run a replica set, to enable the Oplog. The Oplog is mongoDB’s mechanism of replicating databases: the primary database records all the operations performed on it to the Oplog, which is then used by the secondary databases to become (eventually) consistent with the primary database. Having the operations log enabled, we can make use the MongoDB Change Streams.

The Change Streams are MongoDB’s way of allowing users to access real-time data by watching a collection and triggering event notifications when a certain event occurred. The CollectionListener uses them to get the changes made to the tracked collection and record the IDs of the modified documents in an auxiliary collection.

The Collection Listener

This module listens to the Change Streams, takes the IDs of the modified docments and stores them into an auxiliary collection used to mark the target documents as modified. This information will be useful in various scenarios, such as when a new version is registered. If the documents in the target collection are modified and then updated back to their original state, then they are still marked as modified, but when a new version will be registered they will be ignored as they are detected to have no changes.

An important observation about this module is that it requires some level of synchronisation with the VersionedCollection module to make sure that all changes to the target collection are correctly processed under all possible circumstances. The above mentioned Change Streams are eventually consistent (actually their consistency level is higher than that), so the CollectionListener automatically becomes eventually consistent, which is not desired. We cannot partially register a version of a collection therefore we have to make sure that all the modified documents between two register operations are recorded as part of the new version. This requires the main thread to wait for the listener to process all the changes before moving on. This is usually a matter of milliseconds after a versioning operations such as register or checkout is invoked.

A closer look to the database

versioned_collection uses MongoDB itself to keep track of the versioning information. The additional helper collections are created on the same database where the versioned collection is located. There are six new collections created for each new versioned collection and one additional collection per database. The names of the collections start with a double underscore, the convention being __<helper_collection_name>_<target_collection_name>.

The following table lists the helper or tracking collections created for a target collection named coll (for the rest of the document we will use this collection name in the examples and explanations):

Table 2 Tracking collections

Helper collection name	Role
__branches_coll	Each document holds information about a branch in the version tree.
__deltas_coll	Each document contains the delta used to transform a single document between two consecutive versions.
__log_coll	Holds the data about each versioned registered, such as a timestamp, a message, to which version in the version tree it corresponds, etc.
__metadata_coll	Contains a single document tracking the current state (status) of the collection, such as the version the collection is currently checked out at, whether the collection has unregistered changes, whether the collection is in detached head mode, or if it has stashed changes or conflicts.
__modified_coll	Contains the ids of the modified documents and the operation that modified a document.
__replica_coll	Contains a full replica of a specific version of the target collection.
__stash_coll and __stash_modified_collection	Two collections that store the modified documents, and their trackers.
__conflicts_coll:	Contains one document for each document of the target collection that contains conflicts after a pull.
__vc_lock	Stores information used to lock a collection for versioning operations across processes.

Introduction to collection tracking

In this section we are going to briefly discuss how each collection in Table 2 works and interacts with each other, and in the next section we will take a closer look at the structure and the role of each collection.

When a VersionedCollection object is created the first time for a regular collection, most of the versioning functionality is not available, because the collection is not initialised for versioning yet. There are two scenarios when a collection can be initialised: when it is empty, or when it already contains some documents, so the initial state of the collection will contain all the documents that already exist in the collection. After initialisation and when loading an already tracked collection, a process that listens to the changes made to the collection is started. The listener uses the change streams o detect the events corresponding to the updates made to the versioned collection and mark the documents for which the change events were generated as modified. This is done by creating a new document containing the ID of the modified document and the type of the operations that modified it (insertion, deletion, update) and adding this document to the __modified_coll collection.

Versioning a collection means recording all the documents that were modified between two versions and having a mechanism of transforming a document from the state it was in one version to its state in the other version. One trivial way of versioning a collection is making a backup for each version, but this wastes a lot of storage space if the collection is large and only a tiny change to a single document, let’s say, was made between two versions. The obvious and more efficient way of versioning is storing the differences (deltas) between two versions of a document and having a way of applying the delta both forward and backward to move the document from one state to another. To do that, we have two options: each time a document of the target collection is updated we compute the delta between its old and new state after the update, and when we register a new version we compose all the deltas and store them, or we make a copy of the target collection, we record which documents were modified, and when we register a new version we just grab the document from the replica collection and the document from the target collection, compute the delta and record it. The first option makes the versioning operations quicker since most of the work is already done, but it slows down the basic interactions with the database, while the second option requires more time to perform versioning operations, but it is as fast as a regular pymongo collection. This library uses the second approach.

The replica collection is stored under __replica_coll and it is used together with the __modified_coll to compute the deltas during version registration, which are stored in the __deltas_coll collection. The deltas are then used to check out different versions or branches, by iteratively applying the required deltas on the modified documents to move between versions.

The history of versions is recorded in the log tree, which is stored under __log_coll. It is a tree because the collection can have branches, and not a graph because the merging operations will not make a lot of sense in most of the situations (or at least the situations we have developed this library to help with).

The tracking collections

In this section we will briefly look at the role each helper collection plays in collection versioning and examine the state of each collection while modifying and running versioning operations on a target collection. In the next sections we will explain how each piece of the puzzle presented in this section come together.

To help better understanding the purpose of each collection, we’ll create a simple collection that will allow to inspect how the documents of the tracking collection look and are used.

>>> from pymongo import MongoClient
>>> from versioned_collection import VersionedCollection
>>> client = MongoClient("mongodb://localhost:27017")
>>> db = client['versioned_collection_test']
>>> collection = VersionedCollection(database=db, name='dogs')
>>> collection.init("Initial version")
True

Modified documents

This collection stores references to the documents of the tracked collection that were modified or untracked, i.e., the newly added documents, so it simply marks which documents require attention during the registering a new version, for example.

Let’s insert a document in our collection dogs and see how __modified_dogs is changed:

>>> collection.insert_one({
...     'name': 'German Shepherd',
...     'life_expectancy': {'range': [9, 13], 'units': 'years'},
...     'average_height': {'value': 60, 'units': 'cm'},
...     'average_weight': {'value': 30, 'units': 'kg'},
...     'max_speed': {'value': 48, 'units': 'km/h'}
... })
<pymongo.results.InsertOneResult at 0x7f766d953d00>
>>> collection.find_one({})
{'_id': ObjectId('63d7f73b2b2c7d658560a013'),
 'name': 'German Shepherd',
 'life_expectancy': {'range': [9, 13], 'units': 'years'},
 'average_height': {'value': 60, 'units': 'cm'},
 'average_weight': {'value': 30, 'units': 'kg'},
 'max_speed': {'value': 48, 'units': 'km/h'}}

Now we can inspect the __modified_dogs collection:

>>> db['__modified_dogs'].count_documents({})
1
>>> db['__modified_dogs'].find_one({})
{'_id': ObjectId('63d7f73bd29746536c60a014'),
 'id': ObjectId('63d7f73b2b2c7d658560a013'),
 'op': 'i'}

We observe that the collection contains exactly one document, and the document contains an '__id' field, which is the ID of the document itself, a reference to the id of the document created in the dogs collection (ObjectId('63d7f73b2b2c7d658560a013')) and the type of the operations that modified the document (since we added a new document, the operation type will be and insertion, denoted by 'i'). The other types of operations are deletions ('d') and updates or replacements ('u').

Let’s add a new field 'origin' to the document:

>>> collection.update_one(
...     {'_id': ObjectId('63d7f73b2b2c7d658560a013')},
...     update={'$set': {'origin': 'Germany'}}
... )
>>> collection.find_one({})
{'_id': ObjectId('63d7f73b2b2c7d658560a013'),
 'name': 'German Shepherd',
 'life_expectancy': {'range': [9, 13], 'units': 'years'},
 'average_height': {'value': 60, 'units': 'cm'},
 'average_weight': {'value': 30, 'units': 'kg'},
 'max_speed': {'value': 48, 'units': 'km/h'},
 'origin': 'Germany'}

Looking back the the __modified_dogs collection we can see that a new document has been added with 'u' as operation type, corresponding to the update we have just made.

>>> db['__modified_dogs'].count_documents({})
2
>>> list(db['__modified_dogs'].find({}))
[{'_id': ObjectId('63d7f73bd29746536c60a014'),
  'id': ObjectId('63d7f73b2b2c7d658560a013'),
  'op': 'i'},
 {'_id': ObjectId('63d7f742d29746536c60a015'),
  'id': ObjectId('63d7f73b2b2c7d658560a013'),
  'op': 'u'}]

This is a common scenario when the documents are updated multiple times before a version is registered. Here we do not care about the type of the operation that modified the document, but only that it has been modified. When a new version of the collection will be registered, all trackers (IDs) from the the __modified_dogs will be grouped by the ID of the document they mark as modified, deltas will be computed between the old and new state of the document, and then all trackers associated with the relevant document will be removed.

Metadata

The __metadata_dogs collection stores additional information about the state of the target dogs collections. It contains a single document that tracks the current version and branch the working collection is into, whether it is detached, i.e., we checked out to a version that is not the tip of a branch, whether it has changes, conflicts, or stashed data. We can inspect the state of the collection and see how it looks for out current state of the dogs collection.

>>> db['__metadata_dogs'].find_one({})
{'_id': ObjectId('63d7f73b2b2c7d658560a011'),
 'current_version': 0,
 'current_branch': 'main',
 'detached': False,
 'changed': True,
 'has_stash': False,
 'has_conflicts': False}

We can see that we are at version 0 on branch ‘main’ and the collection has unregistered changes.

Let’s register a new version:

>>> collection.register('v1')
True

We can inspect again the states of the two collections we looked at until now. The __modified_dogs collection now does not have any documents in it, while the document in the metadata collection reflects the new state of the collection.

>>> db['__modified_dogs'].count_documents({})
0
>>> db['__metadata_dogs'].find_one({})
{'_id': ObjectId('63d7f73b2b2c7d658560a011'),
 'current_version': 1,
 'current_branch': 'main',
 'detached': False,
 'changed': False,
 'has_stash': False,
 'has_conflicts': False}

We can check out the previous version of the collection and look again at the information in the metadata:

>>> collection.checkout(0)
True
>>> db['__metadata_dogs'].find_one({})
{'_id': ObjectId('63d7f73b2b2c7d658560a011'),
 'current_version': 1,
 'current_branch': 'main',
 'detached': False,
 'changed': False,
 'has_stash': False,
 'has_conflicts': False}
>>> collection.checkout(1)
True
>>> collection.version, collection.is_detached()
(1, False)

When we move to another version that is not the latest one registered on the current branch, the 'detached' field is True. We can think of the data in the metadata collection as the HEAD pointer in git (with a little bit more information).

Logs

This collection keeps data about the registered versions, representing a log book used to order the versions. Let’s look at what we have so far:

>>> list(db['__log_dogs'].find({}))
[{'_id': ObjectId('63d7a8f199b5d3ce7bae4de6'),
  'version': 0,
  'branch': 'main',
  'timestamp': datetime.datetime(2023, 1, 30, 11, 24, 33, 516000),
  'message': 'Initial version',
  'prev': None,
  'next': [ObjectId('63d7a9f799b5d3ce7bae4dea')]},
 {'_id': ObjectId('63d7a9f799b5d3ce7bae4dea'),
  'version': 1,
  'branch': 'main',
  'timestamp': datetime.datetime(2023, 1, 30, 11, 28, 55, 693000),
  'message': 'v1',
  'prev': ObjectId('63d7a8f199b5d3ce7bae4de6'),
  'next': []}]

Notice that each document of the collection has a prev and next field, that references the ID of the next and previous version in __log_dogs. Since we can also have branches, the documents of this collection can be structured as a tree (note that merges of versions from one branch into another branch are not allowed), which we will call the Log Tree.

Branches

In versioned_collection branches are just pointers to a specific version in the version tree. They always point to the latest version registered for a branch, so they can be thought of as tags or shortcuts for naming that version. The branches collection contains a document for each branch of the collection.

>>> list(db['__branches_dogs'].find({}))
[{'_id': ObjectId('63d7f73b2b2c7d658560a012'),
  'name': 'main',
  'points_to_collection_version': 1,
  'points_to_branch': 'main'}]

Let’s create a new branch at the version 0 on ‘main’:

>>> collection.checkout(0)
True
>>> collection.create_branch('branch')
(0, 'main')

The method returns (1, 'main') which represents the version the new branch points to. Looking at the __branches_dog collection again we see exactly that information:

>>> list(db['__branches_dogs'].find({}))
[{'_id': ObjectId('63d7f73b2b2c7d658560a012'),
  'name': 'main',
  'points_to_collection_version': 1,
  'points_to_branch': 'main'},
 {'_id': ObjectId('63d7f8392b2c7d658560a015'),
  'name': 'branch',
  'points_to_collection_version': 0,
  'points_to_branch': 'main'}]

If we lok at the metadata collection, we see that we are indeed checked out on branch 'branch', and interestingly, that the current version is -1.

>>> db['__metadata_dogs'].find_one({})
{'_id': ObjectId('63d7f73b2b2c7d658560a011'),
 'current_version': -1,
 'current_branch': 'branch',
 'detached': False,
 'changed': False,
 'has_stash': False,
 'has_conflicts': False}

The version number -1 basically says that there are no versions currently registered on the 'branch' branch, at the collection state is really just pointing to the previous version (the version which we branch from, i.e., (0, 'main')).

When there are no versions registered to a branch, there is only a single correct (and permitted) way of checking out that branch, and that is via checkout(branch=<branch_name>). Attempting to pass a version will result in an error.

Replica

The replica collection may be the easiest collection to understand, since it is a copy of the state of tracked collection with respect to a certain version. When we checkout to a version, the replica will reflect the state of the collection in that version. More about it in the following sections when we discuss detecting changes, registering and checking versions out.

Deltas

This collection stores the deltas used to modify a document between two states of the collection. Deltas can be applied both forward and backward, allowing to freely move between versions. Let’s inspect the elements of this collection:

>>> db['__deltas_dogs'].find({})
[{'_id': ObjectId('63d7f758ffe7c8b3e260a015'),
  'document_id': ObjectId('63d7f73b2b2c7d658560a013'),
  'collection_version_id': 1,
  'branch': 'main',
  'timestamp': datetime.datetime(2023, 1, 30, 16, 59, 4, 518000),
  'forward': b"\x80\x04\x95q\x01\x00\x00\x00\x00\x00\x00}\x94\x8c\x15..
  .<truncated>",
  'backward': b"\x80\x04\x95s\x01\x00\x00\x00\x00\x00\x00}\x94\x8c\x17...
  <truncated>",
  'prev': None,
  'next': []}]

We observe that we currently have a single delta, since there is a single document in the collection that has been modified once (between version 0 and version 1). The 'forward' and 'backward' fields are truncated for readability purposes, but they store the binary representation of the deltas used to change the document between its state in version 0 and version 1. The deltas are computed using the deepdiff library, and simply are special objects that can be applied to a dictionary to modify it in some way.

Each delta document stores data about previous and next deltas of a registered document, the ID of the document that they can be applied to, and the version for which the delta was registered. We notice that the delta was registered for version (1, 'main'). We can apply the backward delta to go to the version of the document in the previous version of the collection, i.e ., (0, 'main'), where the document is empty ({}), since it didn’t exist at that point, or we can apply the forward delta to go from the previous version to the current ((1, 'main')) version. Therefore the deltas are objects that can be visualised as the edges of the version tree, since they are applied on a specific direction to move between versions. More on this later.

Stash

The stash area of a versioned collection coll contains two auxiliary collections __stash_col and __stash_modified_coll, that store the modified documents from coll and their trackers from __modified_coll. Changes can be stashed and then reapplied, but applying the stashed data overwrites the corresponding documents in target collection, if any. Let’s look at an example.

>>> collection.insert_one({
...     'name': 'Siberian Husky',
...     'life_expectancy': {'range': [12, 15], 'units': 'years'},
...     'average_height': {'value': 55, 'units': 'cm'},
...     'average_weight': {'value': 23, 'units': 'kg'},
...      'hypoallergenic': False
... })
<pymongo.results.InsertOneResult at 0x7f9304971680>
>>> collection.has_changes()
True
>>> collection.stash()
True
>>> collection.has_changes()
False

We can now examine the state of the stash area:

>>> db['__stash_dogs'].find_one({})
{'_id': ObjectId('63ef7d0f779a4d9b40de878b'),
 'name': 'Siberian Husky',
 'life_expectancy': {'range': [12, 15], 'units': 'years'},
 'average_height': {'value': 55, 'units': 'cm'},
 'average_weight': {'value': 23, 'units': 'kg'},
 'hypoallergenic': False}
 >>> db['__stash_modified_dogs'].find_one({})
{'_id': ObjectId('63ef7d0f189363a6cede878c'),
 'id': ObjectId('63ef7d0f779a4d9b40de878b'),
 'op': 'i'}

Let’s insert a dummy document with the same ID as the ID of the 'Siberian Husky' document and then apply the stash:

>>> collection.insert_one({'_id': ObjectId('63ef7d0f779a4d9b40de878b')})
<pymongo.results.InsertOneResult at 0x7f931c647900>
>>> collection.has_changes(), collection.has_stash()
(True, True)
>>> collection.stash_apply()
True
>>> collection.has_changes(), collection.has_stash()
(True, False)
>>> collection.find_one({'_id': ObjectId('63ef7d0f779a4d9b40de878b')})
{'_id': ObjectId('63ef7d0f779a4d9b40de878b'),
 'name': 'Siberian Husky',
 'life_expectancy': {'range': [12, 15], 'units': 'years'},
 'average_height': {'value': 55, 'units': 'cm'},
 'average_weight': {'value': 23, 'units': 'kg'},
 'hypoallergenic': False}

The stash area has a single level (it’s not a stack), so there can be a single set of changes in the stash area. Applying the stash when the main collection has changes is not allowed. If one simply wants to clear the clear the stashed changes, there is the stash_discard() command that simply drops the stashing collections.

Conflicts

The conflicts collection appears only when the target collection has conflicts due to failures in automatically merging documents after a pull command. We can easily create a simple artificial example to illustrate this.

We begin by creating a remote collection, that reflects the current state of the local collection (in version (1, 'main').

db_remote = client['versioned_collection_test_remote']
remote_collection = VersionedCollection(db_remote, name='dogs')
collection.push(remote_collection)

This creates a new database that will contain a copy of the 'dogs' collection, together with the auxiliary collections:

>>> db_remote.list_collection_names()
['dogs',
 '__replica_dogs',
 '__deltas_dogs',
 '__log_dogs',
 '__vc_lock',
 '__modified_dogs',
 '__branches_dogs',
 '__metadata_dogs']
>>> db_remote['__metadata_dogs'].find_one({})
 {'_id': ObjectId('63ef97d3ee966eca7f8b6fce'),
 'current_version': 1,
 'current_branch': 'main',
 'detached': False,
 'changed': False,
 'has_stash': False,
 'has_conflicts': False}

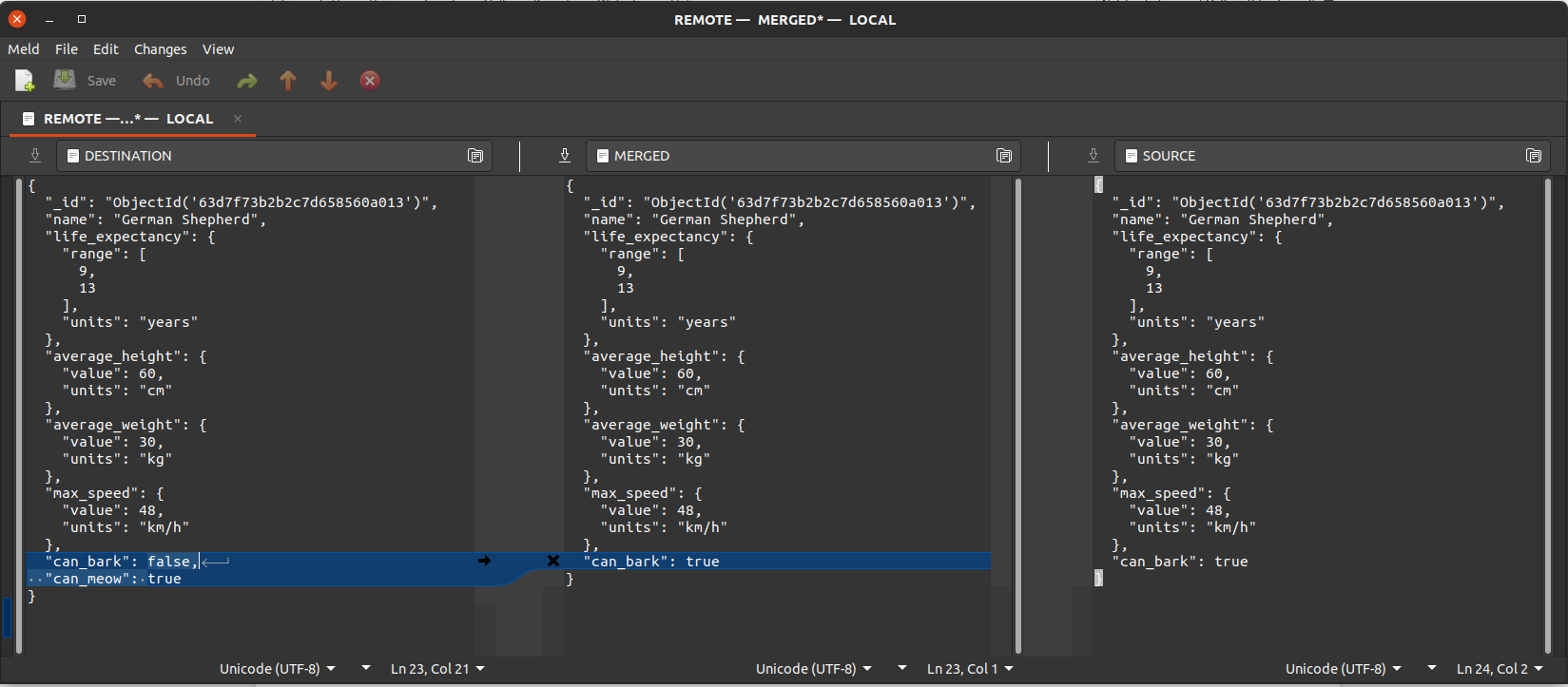

We can now update both collections in such a way that we intentionally create a conflict:

>>> collection.update_one(
...     filter={'name': 'German Shepherd'},
...     update={"$set": {'can_bark': True}}
... )
<pymongo.results.UpdateResult at 0x7fcd0b00f400>
>>> remote_collection.update_one(
...     filter={'name': 'German Shepherd'},
...     update={"$set": {'can_bark': False, 'can_meow': True}}
... )
<pymongo.results.UpdateResult at 0x7fcce1a6fe80>
>>> collection.register('v2')
True
>>> remote_collection.register('v2')
True

Finally, trying to pull from the remote to local, we get an error, as expected:

>>> from versioned_collections.errors import AutoMergeFailedError
>>> try:
...     collection.pull(remote_collection)
... except AutoMergeFailedError as e:
...     print(f'AutoMergeFailedError: {e}')
AutoMergeFailedError: Automatic merge failed. Fix conflicts for branch main and then register a new version. For manually solving conflicts call `resolve_conflicts()`

Looking at the __conflicts_dog collection, we see it contains a single document, corresponding to the conflicting document from the dogs collection. The document contains a ‘destination’ document, which contains the document form the remote collection, a ‘source’ document, which contains the document of the local collection and a ‘merged’ document.

The ‘merged’ document contains the fields from the two documents that were possible to be automatically merged (the fields modified just in a single version of the document). The fields modified by both documents contain the values from the ‘destination’ document, and those values contradict the ones from the source ‘document’, hence the conflict.

>>> list(db['__conflicts_dogs'].find({}))
[{'_id': ObjectId('63ef9855ee966eca7f8b6fd3'),
  'destination': {'_id': ObjectId('63d7f73b2b2c7d658560a013'),
   'name': 'German Shepherd',
   'life_expectancy': {'range': [9, 13], 'units': 'years'},
   'average_height': {'value': 60, 'units': 'cm'},
   'average_weight': {'value': 30, 'units': 'kg'},
   'max_speed': {'value': 48, 'units': 'km/h'},
   'can_bark': False,
   'can_meow': True},
  'merged': {'_id': ObjectId('63d7f73b2b2c7d658560a013'),
   'name': 'German Shepherd',
   'life_expectancy': {'range': [9, 13], 'units': 'years'},
   'average_height': {'value': 60, 'units': 'cm'},
   'average_weight': {'value': 30, 'units': 'kg'},
   'max_speed': {'value': 48, 'units': 'km/h'},
   'can_bark': False,
   'can_meow': True},
  'source': {'_id': ObjectId('63d7f73b2b2c7d658560a013'),
   'name': 'German Shepherd',
   'life_expectancy': {'range': [9, 13], 'units': 'years'},
   'average_height': {'value': 60, 'units': 'cm'},
   'average_weight': {'value': 30, 'units': 'kg'},
   'max_speed': {'value': 48, 'units': 'km/h'},
   'can_bark': True},
  'destination_branch': 'main',
  'source_branch': '__rebranched_main_0'}]

We use the Meld merge tool to resolve the conflicts. To resolve the conflicts we can run:

>>> collection.resolve_conflicts()
[vc] Resolved conflict for document 63d7f73b2b2c7d658560a013
True

Fig. 3 shows the GUI that contains the 2 versions of the document from the remote (right) and local (left) collections, and the middle column shows the automatically merged document with conflicts.

Fig. 3 The Meld Merge Tool GUI used to resolve the conflicts.

We edit the values of the merged document, save the changes and close the Meld window, after which the versioned_collection processes the changes, and reflects them in the database. If there are multiple documents containing conflicts, a new window will appear for each of them. The IDs documents for which the conflicts were resolved are printed to the console.

Warning

After resolving the conflicts, the local and remote database have a diverging version. To solve this, delete the subtree of versions from the remote collection for which there were conflicts and push the required versions from local to remote again, to make sure that the two collections are perfectly synchronised.

Lock

This collection is used for the inter-process synchronisation of a versioned collection. This collection is created only once per database, and contains a document for each versioned collection in the current database. The collection respects the naming rule for hidden collections, and it is always named __vc_lock.

Since we have a single (tracked) collection in the database, the __vc_lock collection looks as follows:

>>> list(db['__vc_lock'].find({}))
{'_id': ObjectId('63d7f73aa78f2b47d9dc990c'),
 'collection_name': 'dogs',
 'locked': False}

The locking mechanism is only used during the versioning operations are performed, and it’s there mainly to prevent accidental usage such as calling checkout from two different processes at the same time. The mechanism implements a re-entrant lock that can be held by a VersionedCollection object, and can be used by other collections to know if the caches have to be reloaded after acquiring the lock. This is required since some of the helper collections cache in memory the data structures stored in the database (such as the log tree), so they have to be reloaded in case other process updated them.

However, this is a very weak form of synchronisation, and the user should take care of locking the collection or the database by performing transactions, or even implementing other locking mechanisms using different primitives (for instance to ensure thread safety, which is not guaranteed by default).
